Overview

A stateless, self-hosted web application: the secure internal reporting channel that the German Hinweisgeberschutzgesetz (HinSchG) and EU Directive 2019/1937 require. Licensed under the GNU General Public License v3.0.

Python and FastAPI, PostgreSQL 18 and Redis 8, shipped as a Docker image. No CDN and no third-party service; every outbound request is opt-in and listed in full.

Beside GlobaLeaks, SecureDrop and Hush Line: open source whistleblowing software compared.

Key design principles

• Anonymity first: no IP address is stored at any layer (four layers).
• Stateless: all session state lives in Redis; the app container is disposable and scales horizontally.
• Compliance by design: the §17 HinSchG deadlines are part of the data model.
• No lock-in: standard Docker Compose; your data is plain PostgreSQL.

Supported platforms

• Any Linux host with Docker 24+ and Docker Compose v2
• x86_64 and ARM64 (Apple Silicon): images for linux/amd64 and linux/arm64
• Registries: GitHub Container Registry (ghcr.io), Docker Hub, Quay.io

Current version

v2.1.1. What it changed:

• A new logo, and each theme tells the browser whether it is light or dark, so Chrome's Auto Dark Mode leaves the light theme alone.
• Colours, code samples and the footer meet WCAG AA contrast in both themes.
• No page is wider than a 360 px phone.

What v2.1.0 changed:

• Every admin changes their own password and links their own single sign-on; a lost authenticator can be reset.
• The §17 HinSchG deadlines follow the statute, from receipt, in calendar months.
• Attachments lose their metadata without a pixel changing.
• A superadmin gives each organisation its own admins.
• Over forty fixes from a bug bounty, listed in the changelog.

What v2.0.1 changed:

• The first account is a superadmin, so organisations can be managed.
• Pages that fit the window no longer scroll past it.

What v2.0.0 changed:

• The confidential identity is shown only to the handler, with an audited reason.
• The first-run setup needs a one-time token.
• Whistleblower times are stored as the day only.
• An optional Tor onion address and ClamAV upload scan.
• TLS by default in the Compose stack.
• An opt-in installation count, off by default.
• Words inside reports are searchable without an index.

Every change: Changelog.

Requirements

A shared VPS with 1 vCPU and 1 GB RAM is enough for most organisations.

Container Images

Multi-arch images (linux/amd64, linux/arm64) go to three registries on every release and every commit to main.

Registries

# GitHub Container Registry (primary)
$ docker pull ghcr.io/openwhistle/openwhistle:latest

# Docker Hub
$ docker pull kermit1337/openwhistle:latest

# Quay.io
$ docker pull quay.io/jp1337/openwhistle:latest

Image tags

Image signatures

Every GHCR image is signed with Cosign (keyless, Sigstore). Verify it before pulling in a security-sensitive environment:

$ cosign verify ghcr.io/openwhistle/openwhistle:latest \
    --certificate-identity-regexp="https://github.com/openwhistle/OpenWhistle" \
    --certificate-oidc-issuer="https://token.actions.githubusercontent.com"

Installation

Docker Compose starts everything with one command: application, PostgreSQL, Redis and nginx.

Step 1 — Clone the repository

$ git clone https://github.com/openwhistle/OpenWhistle.git
$ cd OpenWhistle

Step 2 — Configure environment

At minimum set SECRET_KEY, DATABASE_URL and REDIS_URL; every other setting is in the configuration table.

$ cp .env.example .env
$ nano .env

# The production stack (TLS, nginx); every docker compose command below uses it:
COMPOSE_FILE=docker-compose.prod.yml

# Minimum required values. The production Redis requires REDIS_PASSWORD,
# so it goes into REDIS_URL too, as POSTGRES_PASSWORD goes into DATABASE_URL:
# openssl rand -hex 32 — a new value for each key:
SECRET_KEY=<64 hex characters>
ENCRYPTION_KEY=<64 hex characters>
POSTGRES_PASSWORD=db-password
REDIS_PASSWORD=redis-password
DATABASE_URL=postgresql+asyncpg://openwhistle:db-password@db:5432/openwhistle
REDIS_URL=redis://:redis-password@redis:6379/0

Step 3 — Start services

$ docker compose up -d
► Network openwhistle_default      Created
► Container openwhistle-db-1        Started
► Container openwhistle-redis-1     Started
► Container openwhistle-app-1       Started
► Container openwhistle-nginx-1     Started

Step 4 — Run the setup wizard

Unless you set SETUP_TOKEN yourself, read the one-time setup token from the log:

$ docker compose logs app | grep "Setup token"

Then open https://<TLS_HOSTNAME>/setup (https://localhost/setup by default) and follow the First-Run Wizard. The account it creates is a superadmin: it manages organisations and grants every role.

Deployment privacy

Every request that leaves the host

The whole list; nothing on it is on until you switch it on. Three destinations are fixed — api.github.com, telemetry.wdkro.de and ClamAV's mirrors. Every other one is a server you name.

None carries a whistleblower's words or files in readable form: attachments reach S3 encrypted, and notifications never include report content.

Through a proxy: the update check, the installation count, webhooks, OIDC and S3 honour HTTPS_PROXY, ALL_PROXY and NO_PROXY in the app container (SSL_CERT_FILE for a proxy's CA). SMTP and LDAP connect directly.

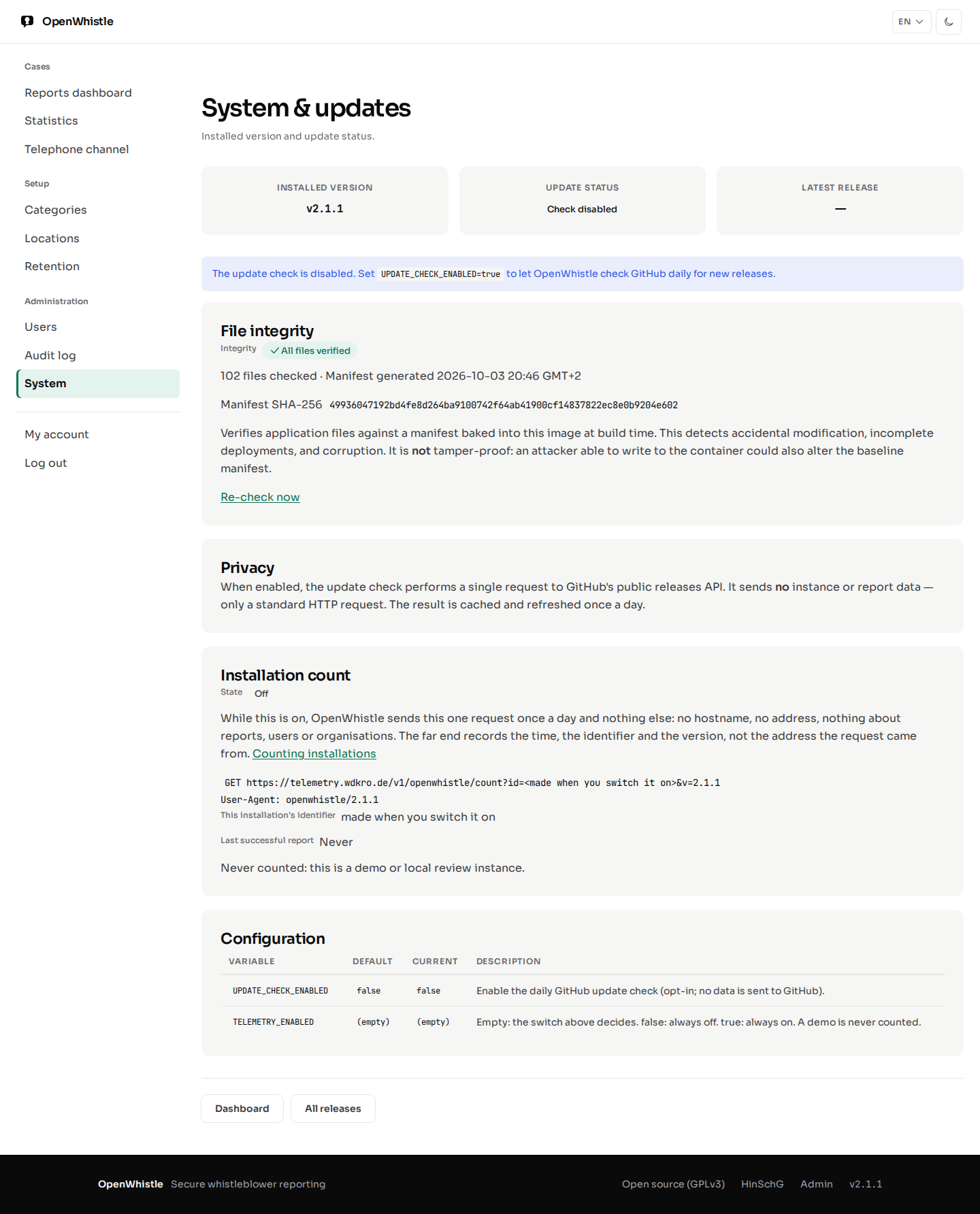

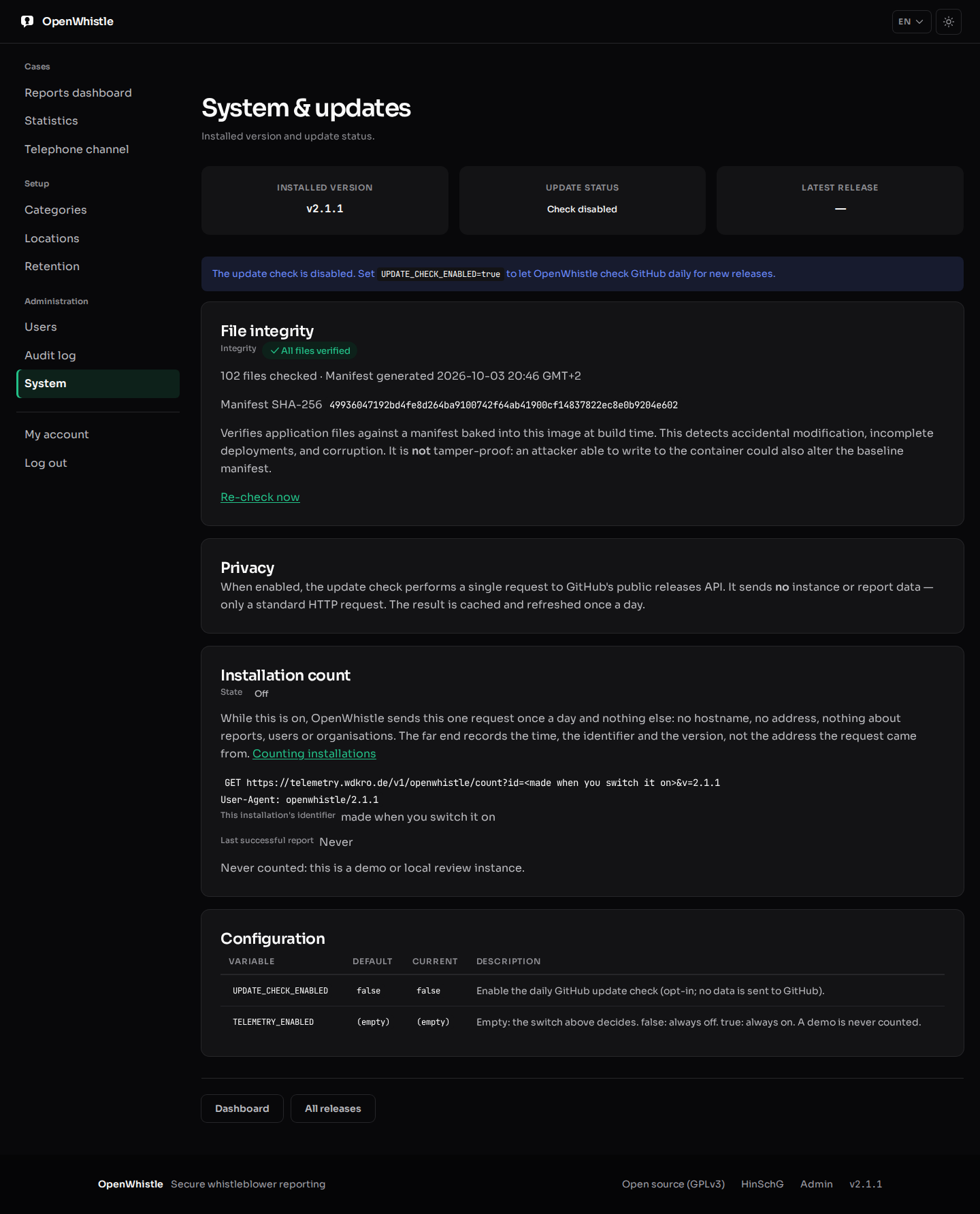

Counting installations

A security fix matters differently at ten installations than at ten thousand; this count is the only way to know which. The setup wizard asks, with the box unchecked. An installation upgraded to 2.0.0 was never asked and stays off. Switch it under Admin → System at any time, no restart.

What is sent, in full, once a day and nothing else:

GET /v1/openwhistle/count?id=<32 hex characters>&v=<version> HTTP/1.1
Host: telemetry.wdkro.de
Accept: */*
Accept-Encoding: gzip, deflate
Connection: keep-alive
User-Agent: openwhistle/<version>

Over HTTPS; no cookie, no body. The last four headers are what the HTTP library sends with every request (Accept-Encoding grows if a brotli or zstd package is ever installed).

TELEMETRY_ENABLED overrides the switch: false keeps it off, true on, and Admin → System shows it as set by the environment. Unset or empty (the Compose default), the switch decides.

Redis sizing

A submission draft lives in Redis for up to 2 hours, Fernet-encrypted with a key that exists only in the whistleblower's cookie. Attachments make it large:

Set maxmemory with maxmemory-policy noeviction (docker-compose.prod.yml uses 1 GB): an evicting policy could drop sessions and rate-limit counters. Past DRAFT_REDIS_MEMORY_PERCENT, new draft attachments are refused so the rest of Redis keeps working.

Behind a TLS-terminating proxy

With Cloudflare, Traefik or a host nginx terminating TLS in front, choose one:

• point it at https://…:443, with the bundled nginx's certificate, or
• switch the bundled nginx to plain HTTP on port 80 with the shipped override. Port 80 then proxies instead of redirecting, and 443 is not published:

COMPOSE_FILE=docker-compose.prod.yml:docker-compose.behind-proxy.yml

• Keep port 80 reachable only from the terminator: nothing on it is encrypted.
• SECURE_COOKIES stays true; the browser still talks HTTPS.
• nginx still strips the client-IP headers the terminator adds, so it rate-limits the terminator's address. Rate-limit per client at the terminator.

SELinux hosts

Nothing to configure. With SELinux enforcing (Fedora, RHEL, CentOS and derivatives), the container must be allowed to read its bind-mounted files. So the mounts in docker-compose.prod.yml and the Ansible template (nginx.conf, nginx/certs, /etc/letsencrypt) carry the :z relabel option, a no-op elsewhere.

Offering an onion address

On a monitored network (a workplace, a school), a visit to OpenWhistle can be seen even though the report stays private. Tor Browser hides the visit too. Run a Tor hidden service on the same host, aimed at the onion-only nginx entry on 127.0.0.1:8080. It is published there only (the ports: entry in docker-compose.prod.yml).

# 1. Install tor on the host, then add to /etc/tor/torrc:
HiddenServiceDir /var/lib/tor/openwhistle/
HiddenServicePort 80 127.0.0.1:8080

# 2. Restart tor, then read the generated address:
$ systemctl restart tor
$ cat /var/lib/tor/openwhistle/hostname
abc...xyz.onion

# 3. Set ONION_LOCATION in .env and restart the app:
ONION_LOCATION=http://abc...xyz.onion
$ docker compose up -d app

With ONION_LOCATION set:

• Every HTML response carries an Onion-Location header; Tor Browser offers to switch.
• The submit page shows the address, except to a visitor already on the onion service.
• A request through the onion listener gets no HSTS and no Secure cookie flag. That connection was never TLS (Tor encrypts it), and a browser can refuse a Secure cookie over plain HTTP.

Kubernetes (Helm)

The ingress controller sees every whistleblower's IP address. The chart (charts/openwhistle/) sets nginx.ingress.kubernetes.io/enable-access-log: "false" on its Ingress. It also sets the bundled nginx's rate limit: limit-rps: "10", limit-burst-multiplier: "3", a burst of 30. It raises proxy-body-size to 55m, like the bundled nginx; ingress-nginx otherwise refuses any upload over 1 MB.

The chart bundles no PostgreSQL and no Redis: set secrets.databaseUrl and secrets.redisUrl to your own. A helm upgrade that changes a value restarts the pods; with autoscaling.enabled the HPA alone sets the replica count.

• Your own ingress.annotations are merged with it; do not set it to null.
• Required: error-log-level: crit in the controller ConfigMap. Below crit, ingress-nginx logs every rate-limited request and upstream error with the client's IP address.
• A rate-limited request gets 503, not 429, unless the controller ConfigMap sets limit-req-status-code: "429" (controller-wide).
• The limit is per peer address. Behind a load balancer the controller must see the real client, or every reporter shares one budget:
  • L4 (TCP, SNAT): proxy protocol (use-proxy-protocol: "true" in the controller ConfigMap, and on the load balancer), or externalTrafficPolicy: Local on the controller Service.
  • L7 (HTTP): use-forwarded-headers: "true" together with proxy-real-ip-cidr set to the load balancer's range. Without that range, any client sends its own X-Forwarded-For and escapes the limit.
• ingress-nginx always forwards X-Forwarded-For and X-Real-IP. OpenWhistle drops them, and the peer address, in its first middleware. The admin dashboard still warns that the proxy knows the addresses.
• Other controllers (Traefik: access log off unless enabled): check their logging.

With several replicas, only the pod that wins the race to create the setup token logs it: kubectl logs -l app.kubernetes.io/name=openwhistle | grep "Setup token" finds it. Setting secrets.setupToken (chart) / SETUP_TOKEN avoids the hunt: every replica uses that value.

A setting from the configuration table without a values.yaml key goes into extraEnv as NAME: value (for example SECURE_COOKIES: "false"). Secrets belong in secrets.

Configuration

Everything is an environment variable in .env. No YAML files and no settings in the database, except the admin preferences managed in the UI.

Notifications

Email (SMTP) and webhook (HTTP POST) notices about new reports and whistleblower messages. Both are off by default and independent of each other.

Neither ever carries the report description, category or submission time.

Email (SMTP)

Webhook

A POST with a JSON body. With NOTIFY_WEBHOOK_SECRET set, an X-OpenWhistle-Signature: sha256=<hex> header lets the receiver verify it (HMAC-SHA256).

{
  "event": "new_activity",
  "new_reports": 2,
  "new_messages": 1,
  "message": "2 new reports, 1 case with new messages"
}

new_messages counts cases with new whistleblower messages, not the messages.

SLA Reminders

Reminders before a HinSchG deadline runs out. The scheduler checks every open report every 30 minutes; Redis dedup keys send each warning once per window.

• Email (your own admins): one per case, with its case number.
• Webhook: one per run, with only the number of cases due. Never a case number or a deadline date.

Data Retention (GDPR / HinSchG)

Closed reports are deleted automatically after a retention period. This satisfies GDPR Art. 5(1)(e) (storage limitation) and HinSchG §11 Abs. 5 (documentation is deleted three years after the procedure ends).

• Each deletion writes an immutable audit entry (report.auto_deleted) with the case number and legal basis.
• /admin/retention shows the configuration and the next scheduled run.
• On by default since v1.5.0. A report is deleted RETENTION_DAYS after it is closed. OpenWhistle was released in 2026, so no installation holds a report closed three years ago: turning retention on deletes nothing today.

Multi-Tenancy

One deployment can serve several independent organisations (tenants), each with its own reports, categories, locations and admin users. The superadmin role manages them at /admin/organisations.

Each organisation has its own reporting link, /submit/<slug> — the one to give its employees:

• The wizard there offers only that organisation's categories and locations, and files the report under it.
• The link, with a copy button, is on /admin/organisations (superadmin) and on an organisation admin's dashboard.
• /submit is the default organisation's (DEFAULT_ORG_SLUG). If that names no active organisation, /submit answers 503 and logs the setting, and a set-up instance refuses to start.
• An unknown or deactivated slug is a 404. There is no list of organisations, but a slug is part of a public link: anyone can test whether a guessed one exists.
• A draft stays with the organisation it was started for. Another organisation's link shows a fresh wizard; its first step replaces the draft, and the earlier one is lost to that browser.
• With multi-tenancy off there is one wizard, at /submit: /submit/<default slug> redirects there, any other slug is a 404.
• Every account belongs to an organisation. On /admin/users a superadmin chooses it for a new account; an admin creates accounts in their own. Accounts LDAP provisions, and those made before multi-tenancy was switched on, belong to the default organisation.

LDAP / Active Directory Login

Admins can also sign in with corporate LDAP. The first login creates an AdminUser (no local password) with the Case Manager role; an admin promotes it if needed. TOTP enrollment still follows, as for every account.

• Accounts with a local password, such as the one the setup wizard created, keep signing in with it.
• A directory user whose name a local account already has is refused, never merged into it.
• The username comes from LDAP_ATTR_USERNAME. An entry without it is refused.

LDAP uses python-ldap (the OpenLDAP client) and S3 storage uses boto3: optional extras, both in the container image. From source, install libldap2-dev libsasl2-dev, then pip install '.[ldap,s3]'.

S3-Compatible Attachment Storage

Attachments are stored in PostgreSQL by default (STORAGE_BACKEND=db). STORAGE_BACKEND=s3 stores new ones in an S3-compatible bucket. Existing ones stay in the database and keep working.

File Attachments

Whistleblowers can attach evidence to a report. Files are stored with it, in PostgreSQL or in S3.

Scanning uploads for viruses

A ClamAV clamd daemon can scan attachments before they are stored. Off by default; to turn it on:

COMPOSE_PROFILES=clamav
CLAMAV_HOST=clamav

• docker-compose.prod.yml ships a clamav service behind the clamav profile, never reachable from the host.
• It shares only the internal Docker network with app, not the proxy network, so nginx cannot reach it either.
• Signature updates need outbound internet access, unlike the rest of the stack, so clamav gets its own egress network.
• It needs roughly 1.5 GB RAM for the loaded signature database.

Scanning is fail-closed. With CLAMAV_HOST set, an upload is refused whenever clamd is unreachable or times out, exactly as if it were infected: nothing is ever stored unscanned. The whistleblower sees a generic "try again in a few minutes"; no file name, size or content reaches the log.

The Helm chart ships no clamav pod; the Compose profile has no Kubernetes equivalent. Setting config.clamavHost in values.yaml turns on the fail-closed behaviour for every upload: an unreachable clamd means refused, not skipped. Point it at a clamd you run and reach from the cluster, as its own Deployment and Service or an external instance. Leave it empty to keep scanning off.

Limits and allowed types

Access control

• Whistleblower: /status/attachments/{id}, with an ow-status-session cookie tied to the report that owns the file. No other report's files are reachable. The session ends 2 hours after login and viewing does not extend it, so its remaining lifetime does not tell when the case was last opened.
• Admin: /admin/reports/{report_id}/attachments/{id}, with an admin session; the file must belong to that report.

Every download carries Content-Disposition: attachment, so the browser never renders a file inline: no MIME sniffing, no script injection.

Privacy and deletion

• Metadata removed on upload:
  • JPEG, PNG, WebP and GIF, also photos inside DOCX/XLSX: EXIF/GPS, camera data, XMP, ICC profiles and text chunks. Only the orientation tag stays.
  • JPEG, PNG and WebP are not re-encoded: pixels, colours and animation frames stay exactly as uploaded. Data after a JPEG's end (a motion-photo video) is removed.
  • PDF: document info, XMP on the document, its pages and images, comment authors and times, the EXIF of embedded JPEG photos, the file identifier. A PDF with files embedded in it is refused.
  • DOCX/XLSX: author, company and custom properties, SharePoint columns, the folder a workbook was saved in, the account name in template and link paths, revision-session ids and document variables.
  • A file that cannot be parsed for cleaning is refused. Plain text is stored as uploaded.
• Office authors anonymised: comment and tracked-change authors, initials and account ids in DOCX/XLSX become Author. Embedded thumbnails, zip timestamps and zip extra fields are removed. A comment's text is content and stays, and Excel writes the author's name into it.
• Filenames encrypted with the report's data key (older names by migration 003). S3 object keys are random ids, never the filename; objects stored before v1.5.0 keep their old key.
• Encrypted at rest: file bytes are encrypted with the report's data key before they reach PostgreSQL or the S3 bucket. Attachments uploaded before v1.4.0 stay unencrypted and readable.
• Deletion: a hard-deleted report (DSGVO Art. 17) loses its attachment rows by CASCADE DELETE, and its S3 objects are deleted too.

First-Run Wizard

On first boot, /setup serves the wizard: one page, four parts. Once an admin account exists it redirects to /admin/login for good.

Wizard steps

1. Setup token
   From SETUP_TOKEN or the log (Installation, step 4).
2. Admin account
   A username of 3–64 characters (letters, digits, spaces and . _ @ -). A password of at least 12 characters and at most 72 bytes.
3. TOTP
   Scan the QR code with an authenticator app (Google Authenticator, Authy, Bitwarden, etc.) and enter its 6-digit code. Mandatory; it cannot be skipped.
4. Installation count
   Optional and unchecked: may this installation be counted once a day (what is sent)? Changeable under Admin → System.

Admin Guide

The admin portal is at /admin, which leads to /admin/login.

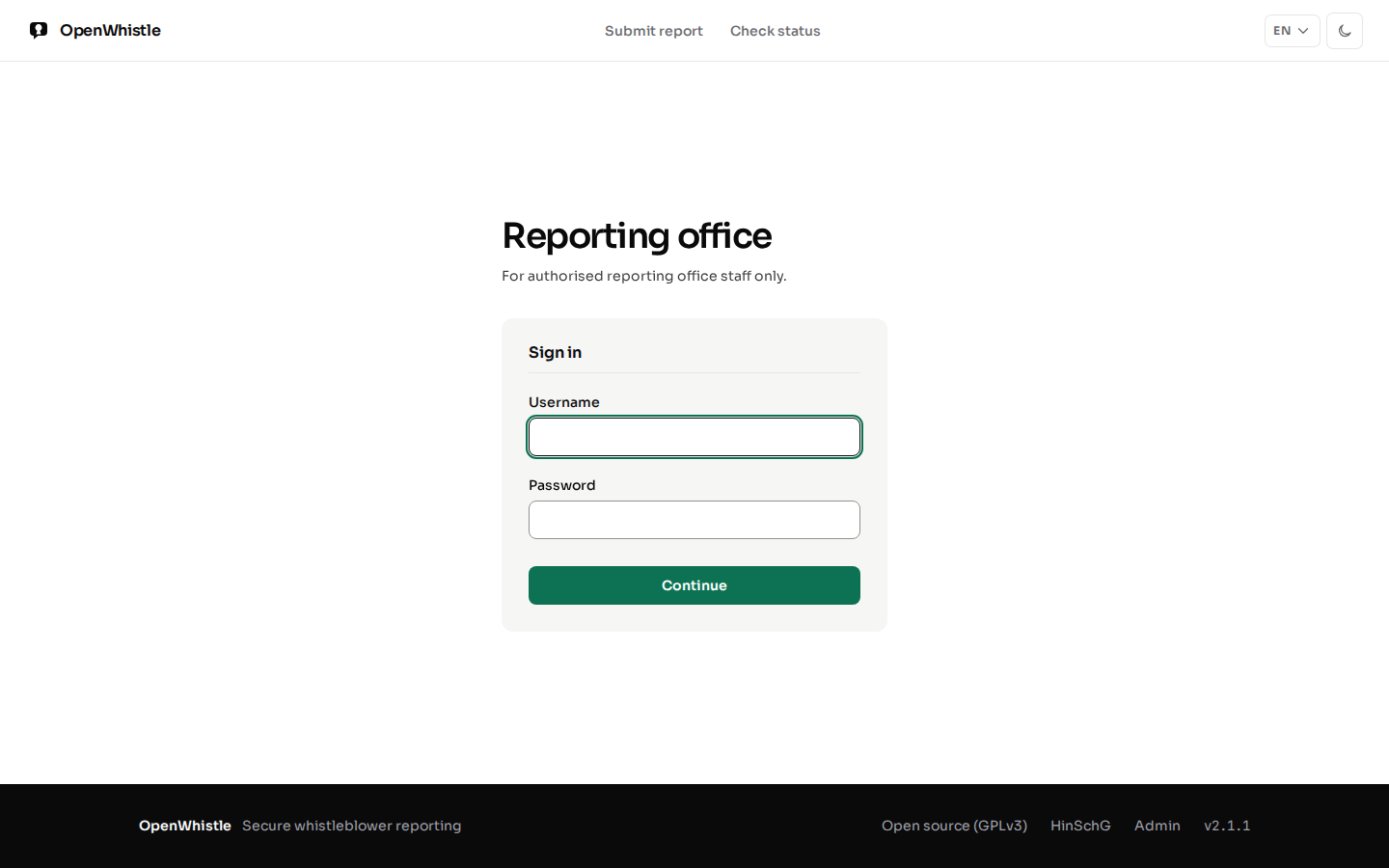

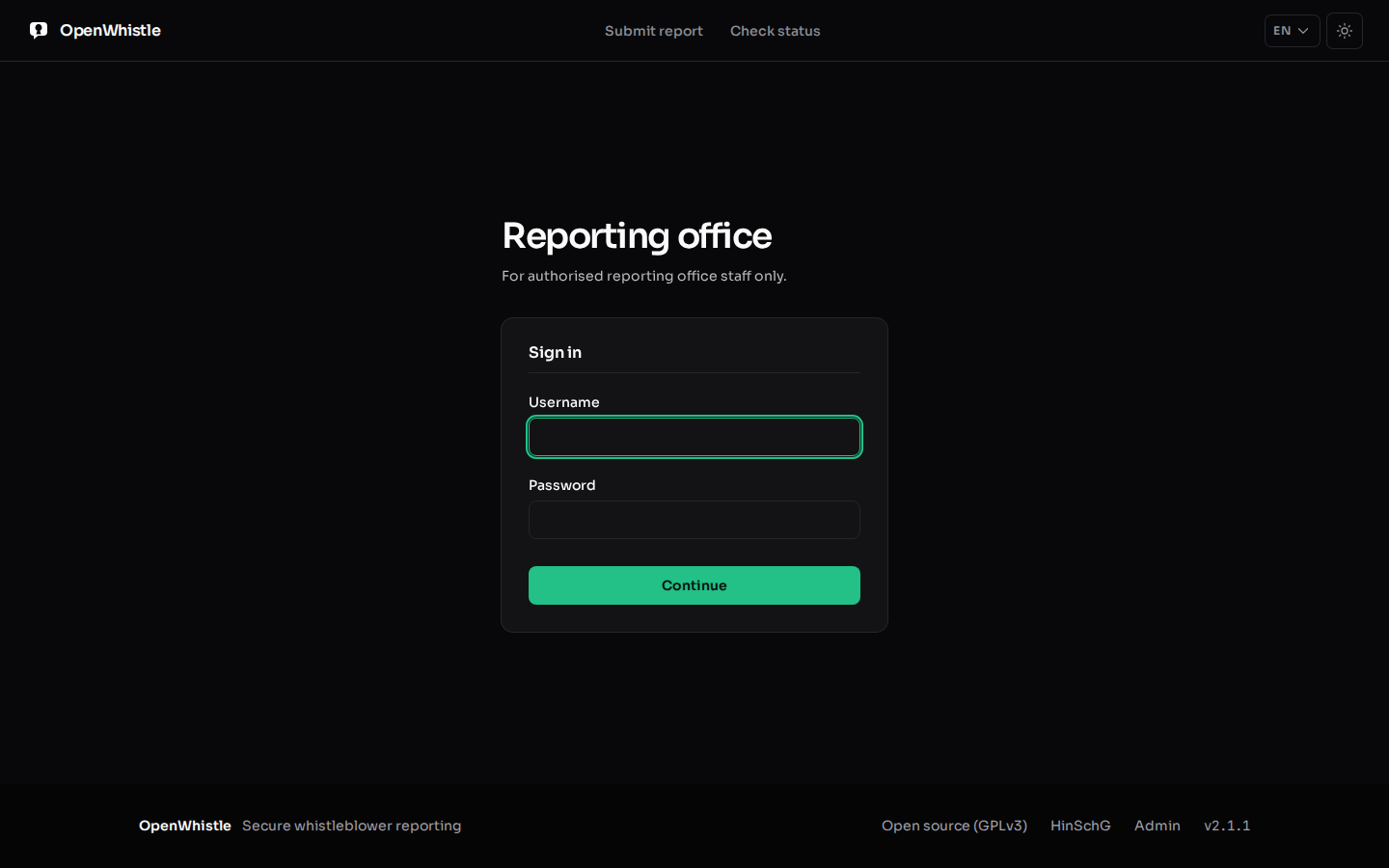

Signing in

Every account signs in with two factors. The first is a password (local or LDAP) or OIDC; the second is always a TOTP code.

• An account without TOTP yet (new from /admin/users, or first provisioned by LDAP) goes to /admin/mfa/setup after its first factor. Scan the QR code, confirm one code, and the session starts.
• A password someone else set is replaced next, at /admin/account (Your account).
• After MAX_LOGIN_ATTEMPTS wrong passwords, the username is locked for LOGIN_LOCKOUT_MINUTES from the last one. Upper and lower case count as one username.
• A session lasts ACCESS_TOKEN_EXPIRE_MINUTES; Stay signed in renews it, up to SESSION_MAX_HOURS after login.

Dashboard overview

/admin/dashboard lists every report you may see, with sortable columns, pagination and filters for status, assignee and location. Each status filter shows its case count within the chosen location; a case manager's counts cover only their own cases.

Roles

Accounts are managed at /admin/users. A new account is a case manager unless another role is chosen; an unknown role is refused. The last active admin cannot be deactivated, so nobody is locked out. Only a superadmin creates, changes, deactivates or reactivates a superadmin. In DEMO_MODE the demo accounts cannot be changed. Only admins may dismiss the IP-header warning.

Your account

My account in the sidebar opens /admin/account, for every role. It shows the username, role, organisation and the ways the account signs in.

• A password change needs the current password, the new one twice, and a current TOTP code. An open session alone is not enough.
• The new password has 12 characters to 72 bytes and differs from the current one.
• Wrong passwords and codes here count towards the sign-in lockout of the account.
• After the change, every other session of the account ends. The one in use stays.
• The audit log records auth.password_changed, never the password.
• An LDAP or single sign-on account has no password here. It changes it in the directory or at the provider.
• Link single sign-on and Unlink single sign-on are on this page (OIDC integration).
• With DEMO_MODE, the demo accounts keep their password, so every visitor can sign in.

Whoever sets a password for someone else knows it. So its holder must replace it:

Until then, every other admin page leads back to /admin/account. Sign-out still works. The script cannot tell whether its operator is the holder, so it always asks for the change.

Lost password or authenticator

• Run the script inside the container: docker exec -it openwhistle python scripts/reset_admin_password.py ….
• Every reset ends every session of the account at once. After an authenticator reset, the old app stops working.
• A password reset by the script is in the audit log as admin.password_reset. The next login must change it.
• A reset in /admin/users makes the account new again: new authenticator, and a new temporary password in place of the old one.
• The temporary password is shown once, to the superadmin. It is in no log and no audit entry. Hand it over in person.
• With it, the next login goes to /admin/mfa/setup to enrol a new app, as for a new account. Then the holder chooses a new password (Your account).
• An LDAP or single sign-on account has no local password. It keeps its directory or provider login and enrols a new app.
• The script prints the new secret and its otpauth:// URI once. Hand them over in person.
• A superadmin cannot reset their own authenticator in the browser: it would end their session and leave the account behind a password. Another superadmin or the script does it.
• The script works for any account, the last superadmin included.
• Every reset is in the audit log as admin.totp_reset. With DEMO_MODE, the demo accounts cannot be reset.

Managing reports

The search field on /admin/dashboard takes any part of a case number (for example 00042) or a word from the report.

• A word search decrypts the description and messages of the reports you may see, in memory, for that request only. Nothing searchable is ever stored.
• The confidential name is never matched: a hit would confirm an identity guess without an audited reveal.
• The search is sent as a form (POST), so the term never appears in a URL, the browser history or a proxy's access log. Paging keeps it that way.
• Every word search is audited (report.content_searched): the term, stored encrypted, and the number of matching reports.

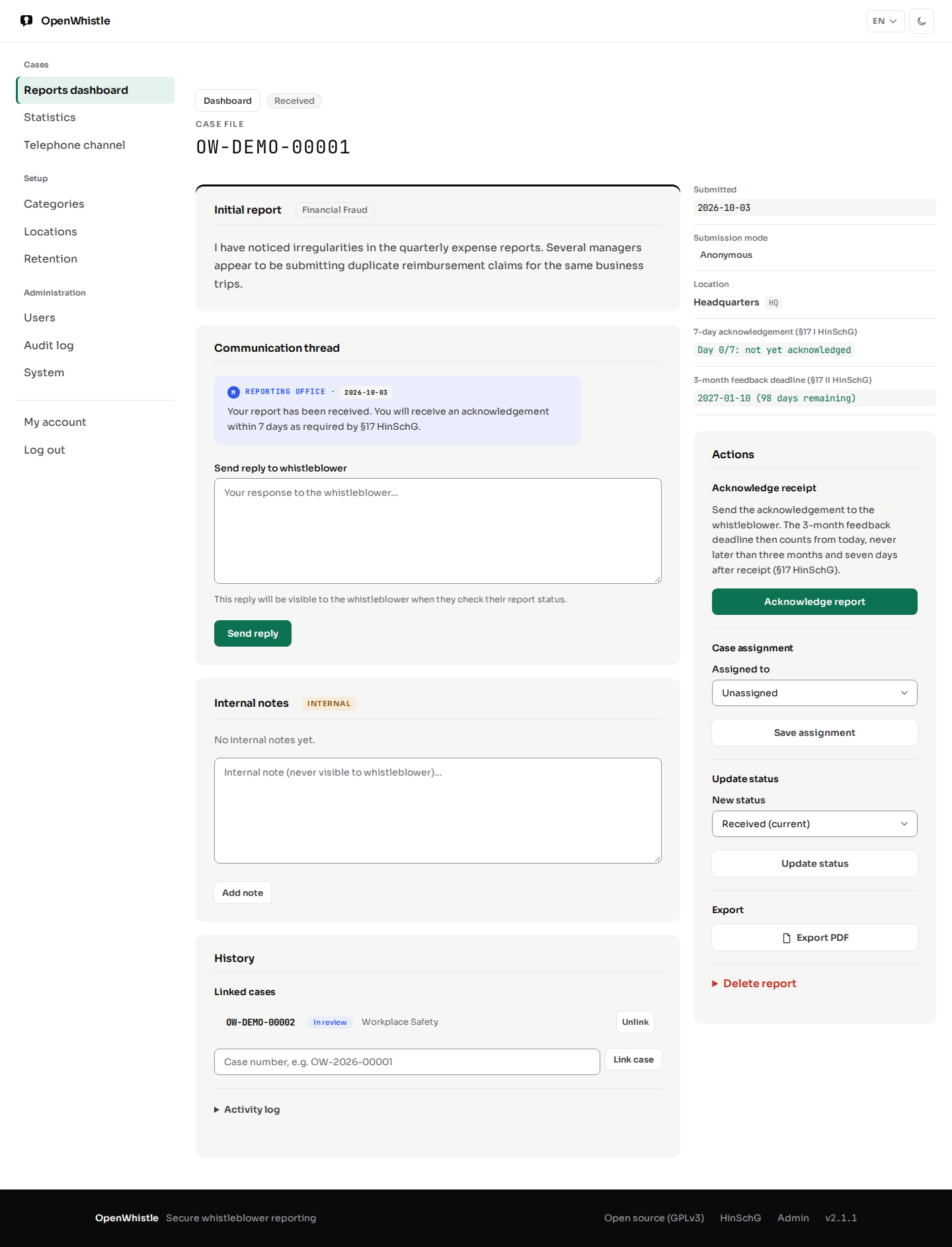

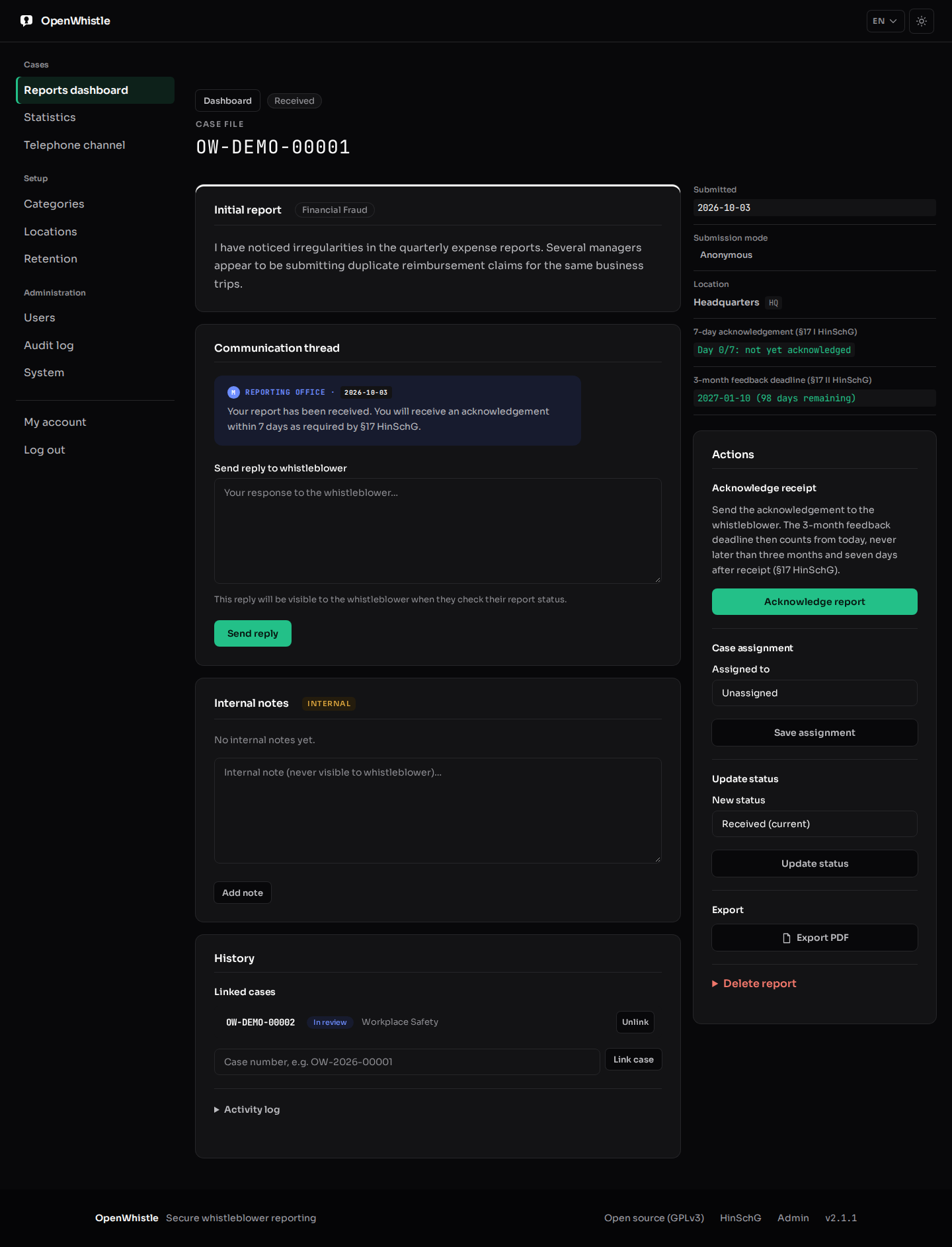

Click a report to open its case page, /admin/reports/{report_id}:

• Read the report and its submission mode (anonymous / confidential).
• Acknowledge report: tells the whistleblower and starts the 3-month feedback clock.
• Move the status, assign the case to an admin or case manager, link related cases.
• Reply to the whistleblower through the anonymous channel; add internal notes they never see.
• Export a PDF with an SLA compliance section (HinSchG §17), the confidential identity left out. It prints Latin (any diacritic), Greek and Cyrillic text; CJK and right-to-left scripts (Arabic, Hebrew) are not supported.
• Delete report, collapsed at the end of Actions: a second admin must confirm (4-eyes principle). It is the GDPR Art. 17 erasure.
  • Neither the requester nor an account the requester made (on /admin/users, directly or through others) may confirm, and the reverse: whoever made an account chose its first password.
  • A superadmin can reset another account's authenticator and act as it, so the rule holds between admins, not against a superadmin.

Confidential identity. A confidential reporter's name and contact are hidden by default.

• The case handler (while unassigned, an admin of the case's organisation) clicks Show identity (POST /admin/reports/{id}/identity). A reason is required: 10–500 characters, without the reporter's name.
• The identity shows on that page only; the audit log records who, when and why.
• The case page says only that a reason was recorded. The reason is on /admin/audit-log and in the CSV export.
• Export PDF with identity (POST /admin/reports/{id}/export.pdf) asks for the same audited reason. The plain Export PDF never includes it.
• Opening a case is logged as Report opened.

Audit log

• /admin/audit-log: every admin action, immutable (HinSchG §11 Abs. 5), filterable, shown as readable labels.
• Deleting a report deletes its entries with it. One entry stays, with the case number: Deletion confirmed (who requested, who confirmed) or report.auto_deleted.
• CSV export at any time: the machine action codes plus a label column; the detail column is a JSON object. It holds every row the page's filters select, and taking it is itself recorded.
• Downloading an attachment is recorded, as opening the case and exporting its PDF are.
• Case views (Report opened) are hidden in the log and the export unless you tick Show case views (?views=1).
• With multi-tenancy on, each organisation sees only its own entries. Instance-wide security events, such as a password-spraying alert, go to superadmins only.

Categories and locations

/admin/categories holds the report categories, all configurable. /admin/locations holds branches or offices; while any is active, the whistleblower wizard asks for one at step 2.

Dashboard statistics

/admin/stats: total reports, status distribution, category breakdown and the 7-day SLA compliance rate (acknowledged within 7 days of 00:00 UTC on the submission day). A case manager's figures cover only their own cases.

System & updates

• /admin/system shows the installed version. With UPDATE_CHECK_ENABLED=true (opt-in, off by default) it also says whether GitHub has a newer release: checked once a day, cached, no instance data sent.
• Installation count: whether this installation is counted, the exact request, its identifier and the last successful report. An admin switches it (one audit entry per change) and resets the identifier; see Counting installations.
• File integrity: the application files against a SHA-256 manifest baked into the image at build time. It reports missing, modified or unexpected files, which catches accidental changes, incomplete deployments and corruption. Re-check now refreshes it.

The integrity check is not tamper-proof: an attacker who can rewrite the files can rewrite the manifest too.

HinSchG deadline tracking

The statutory timelines of §17 HinSchG, shown on the dashboard, the case page, the whistleblower's status page and the PDF:

• 7-day acknowledgement: counted from 00:00 UTC of the submission day. Times are stored as the day only, so the deadline can fall earlier, never later.
• 3-month feedback: three calendar months from the acknowledgement; without one, three months and seven days from receipt (§17 Abs. 2). Every report has this deadline from the day it arrives, and an acknowledgement never moves it later. Feedback goes to the whistleblower through the message channel before it runs out.
• A deadline is overdue once it has passed. On its last day it reads 0 days remaining.
• The statistics' 7-day rate counts only the reports whose seven days are over or that were acknowledged.

Telephone reporting channel guide

/admin/telephone-channel is a compliance reference for an oral reporting channel beside the digital one:

• HinSchG § 16 Abs. 3: reports orally and in text form; a dedicated number, confidentiality (§ 8), impartial staff
• Implementation options: internal hotline vs. external ombudsman
• § 11 Abs. 2 HinSchG: a call is recorded only with consent, otherwise documented as a summary
• Integration workflow: how telephone reports enter the OpenWhistle case system
• Legal references with links to the official statute text

Whistleblower Guide

The form is at the installation's root URL (e.g. https://your-domain.example.com/). No account, email address or personal information is needed.

Where several organisations share one installation, use the link your organisation gave you (/submit/<organisation>). Another link files the report with another organisation.

Submitting a report

Use a private browsing window and, where possible, a network not traceable to you (public Wi-Fi, Tor). The wizard keeps your progress in a temporary session for 2 hours; you can go back and forward at any step.

1. Mode. Anonymous: no personal data ever stored. Confidential: name, contact details and an optional secure email, stored encrypted. The case handler sees them only after recording a reason. Both comply with HinSchG.
2. Location (optional), only when the operator has configured branches or offices.
3. Category (required) from the operator's list (e.g. financial fraud, safety violation, discrimination).
4. Description (required), 10 to 10 000 characters. Be as specific as possible without naming yourself.
5. Files (optional): PDF, images, Word (.docx), Excel (.xlsx), CSV, TXT, up to 10 MB each and 5 per report. Legacy .doc/.xls are refused; save them as .docx/.xlsx. Metadata is removed, and with virus scanning on, an infected file is refused. Going back keeps attached files; choosing new ones replaces them, and Remove drops one.

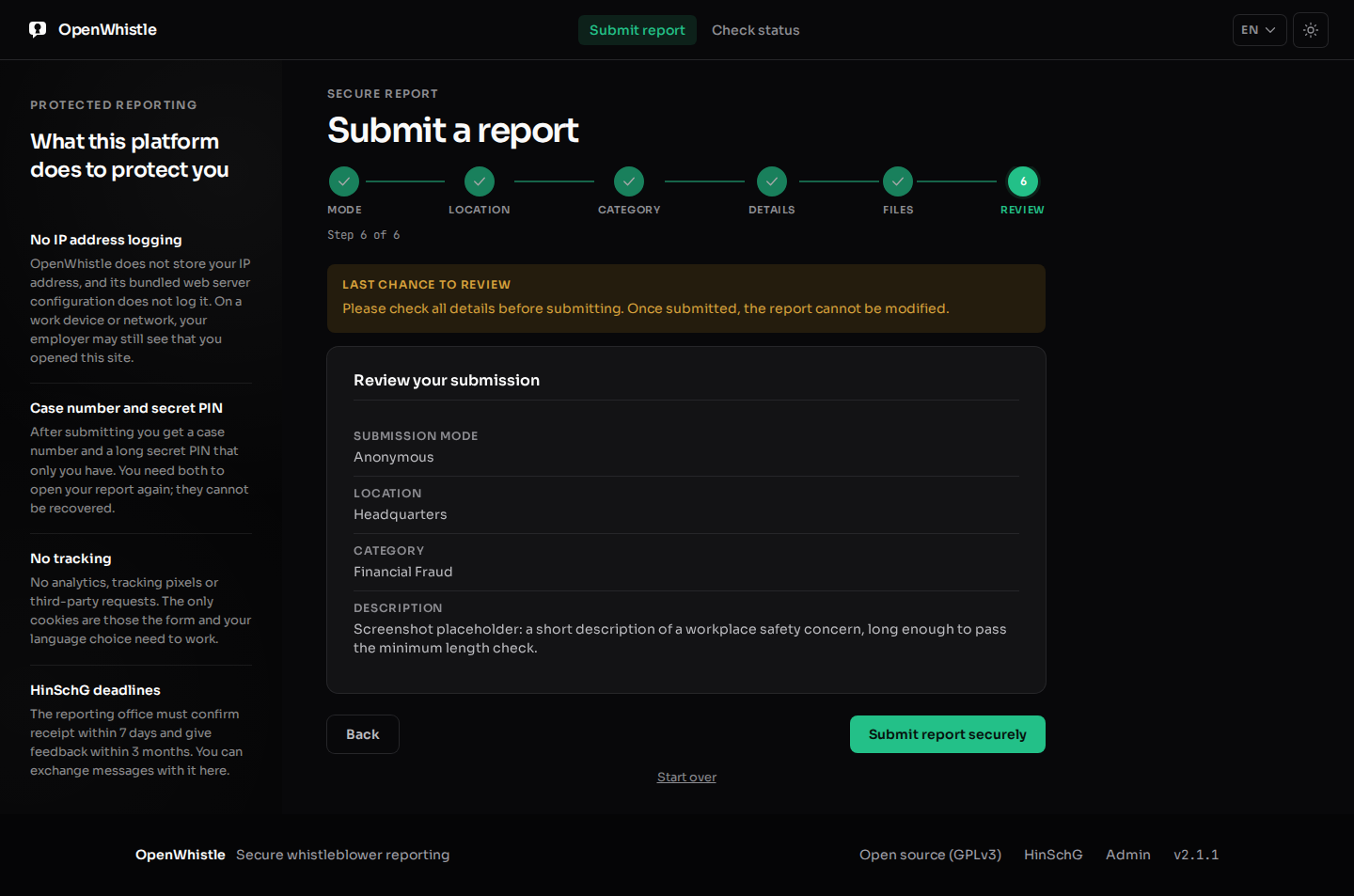

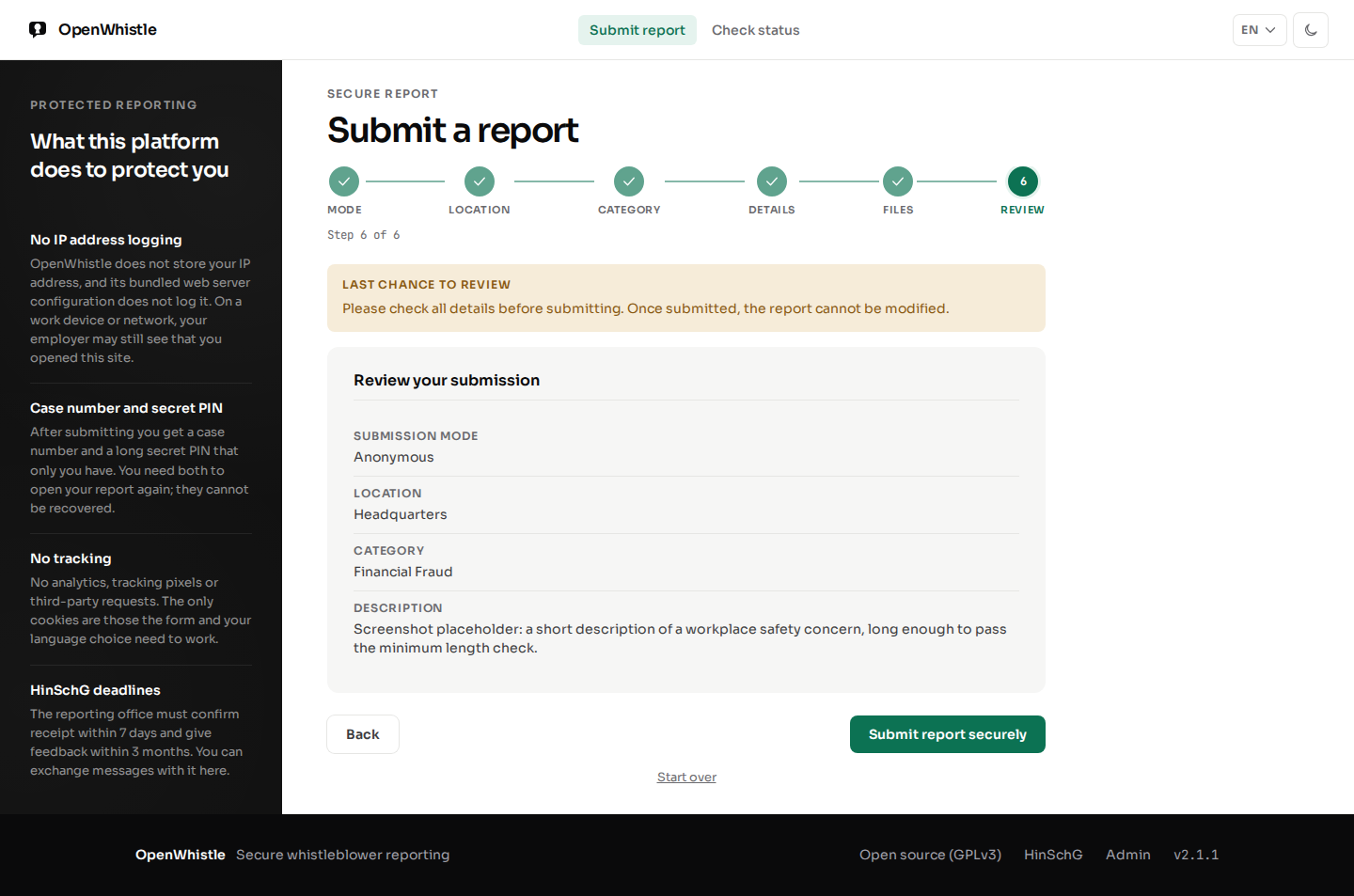

6. Review and submit.

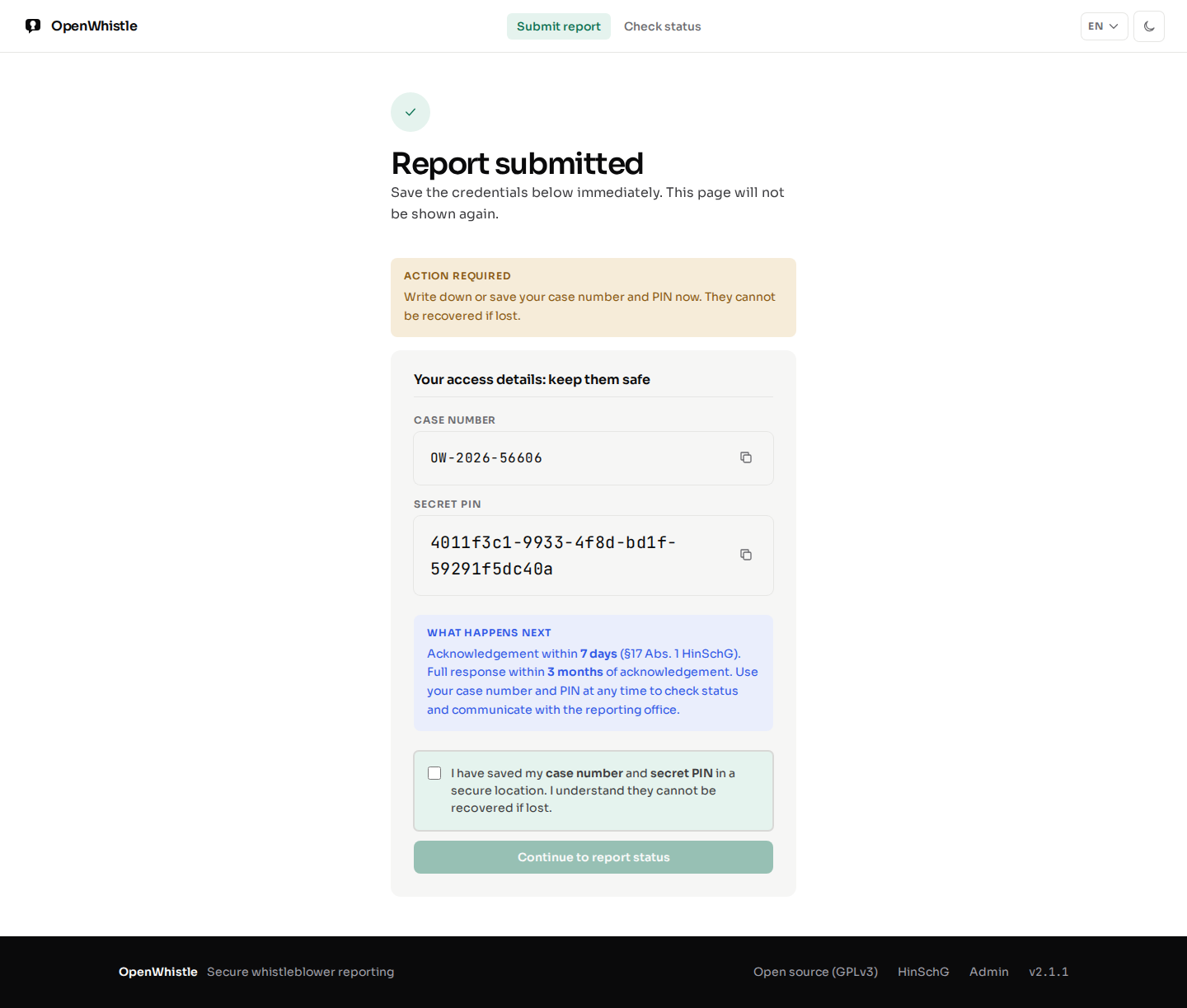

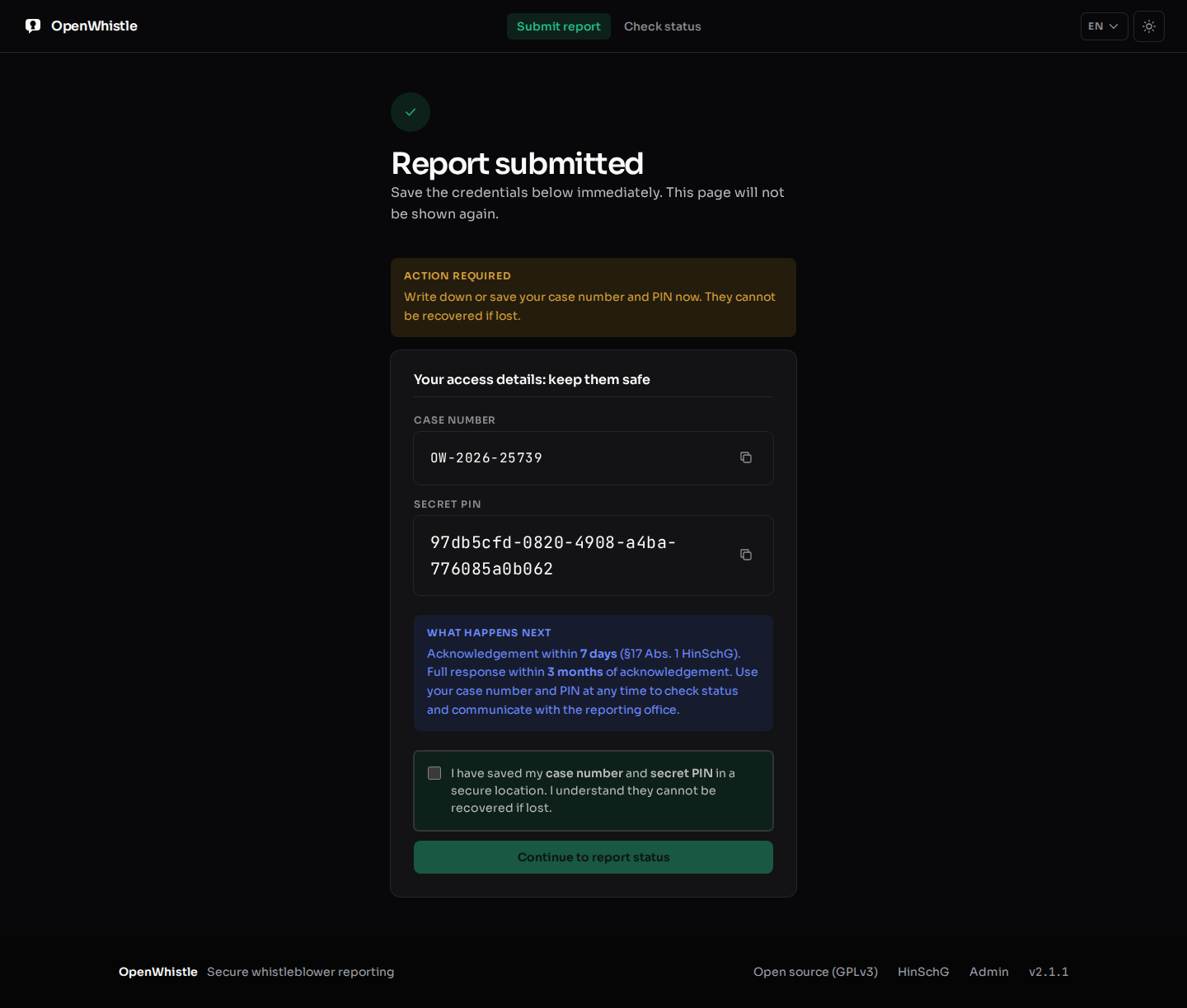

Note down the case number and PIN at once. They are shown only once and cannot be recovered. Continue to report status unlocks only after you tick that you saved them.

• A second click on Submit never creates a second report. It shows the same case number and PIN, or, while the first click still runs, a still being processed page with Check again.
• If the operator offers an onion address, the submit page shows it for use with Tor Browser.

Checking report status

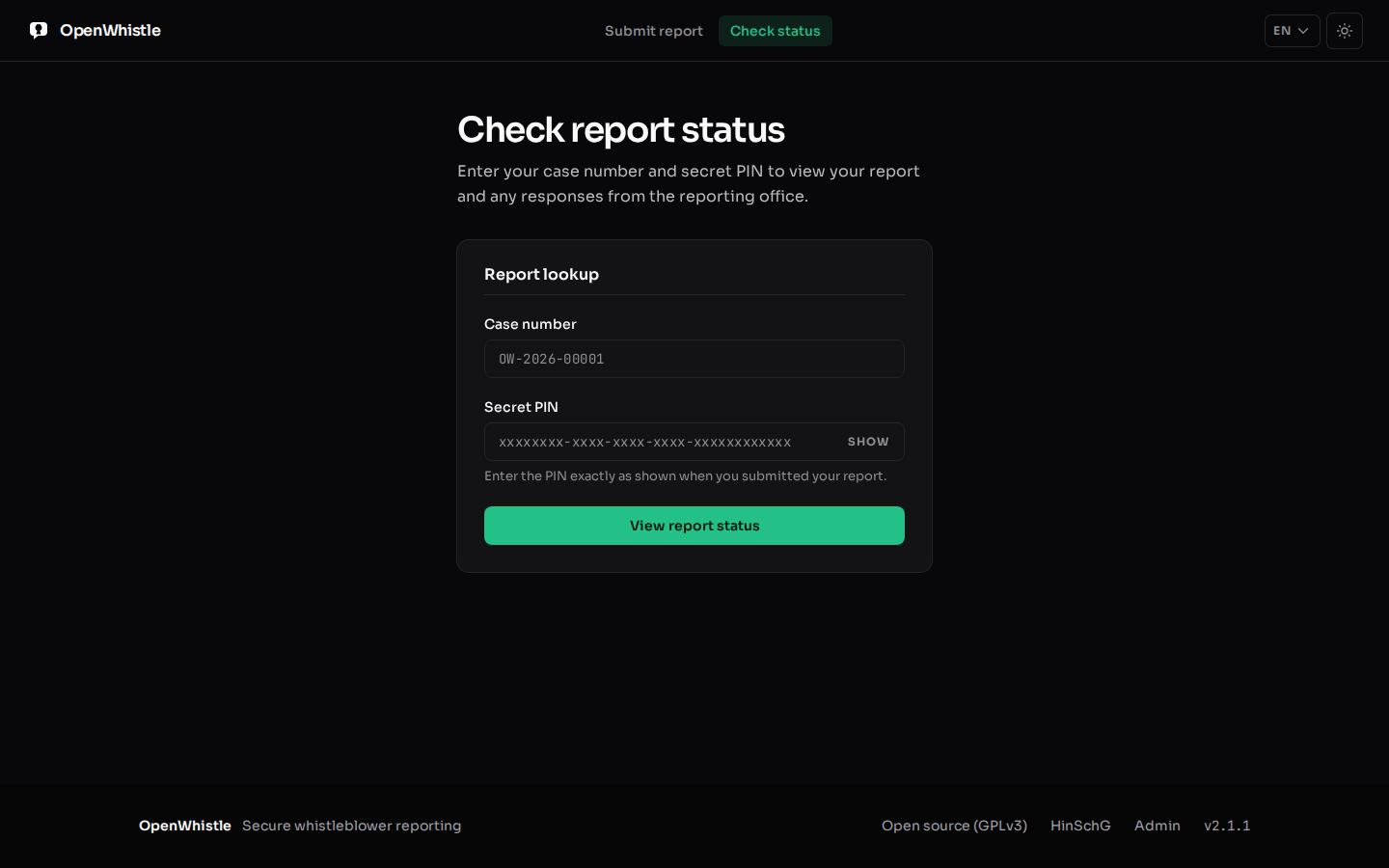

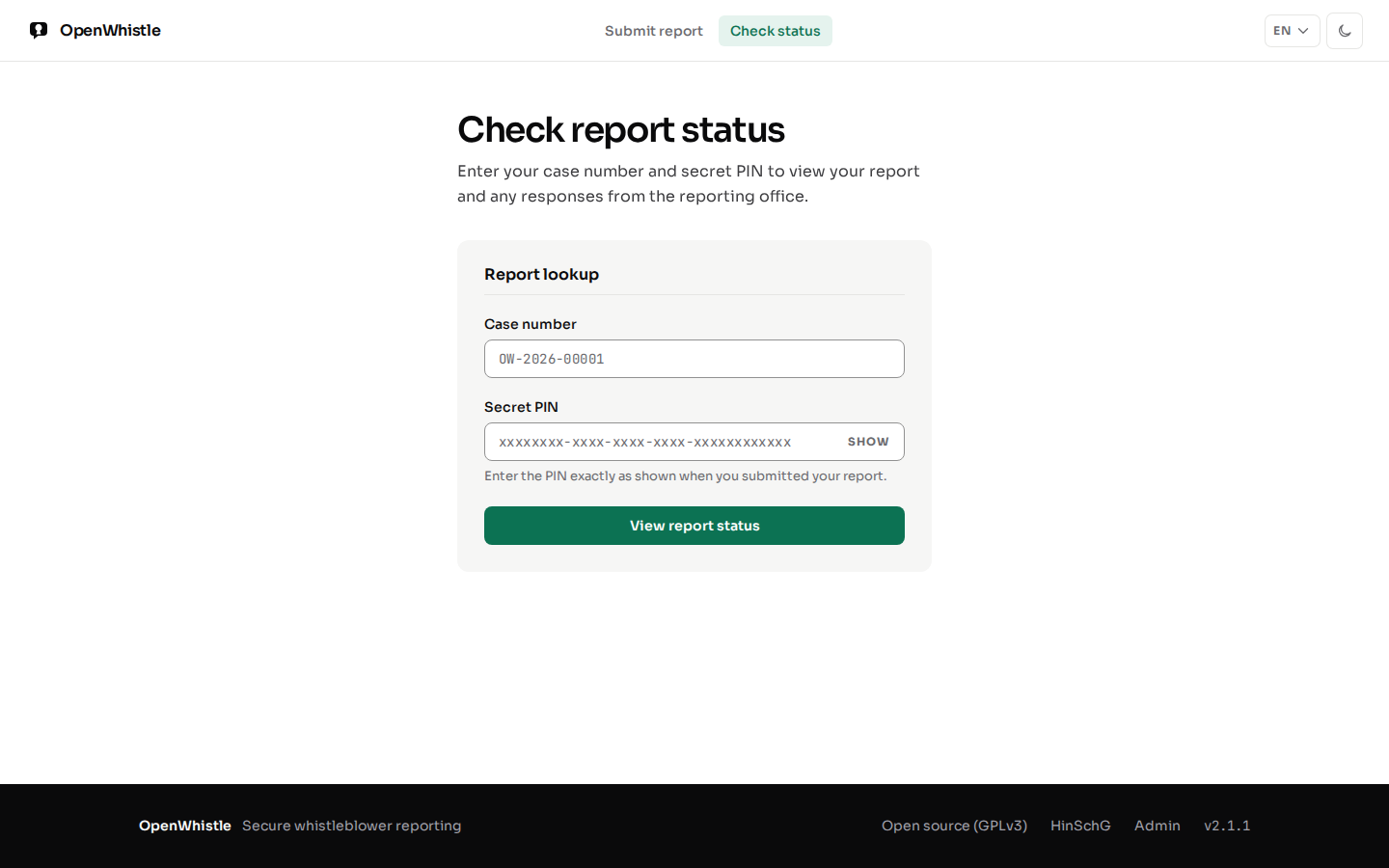

At /status, your case number and PIN show:

• Current case status
• Admin responses (if any)
• HinSchG deadlines: the 7-day acknowledgement deadline and 3-month feedback deadline with days remaining
• A form to send a follow-up message

Nobody can lock you out of your own case: the correct case number and PIN always work. After several wrong attempts on a case number the page asks you to wait, a notice, not a lock. Look up a different report ends the session on a shared device.

What is stored about when you acted

Only the day (UTC), never the time, of your report, your messages and your files. An exact time could be matched to who was at their desk. The reporting office's own replies keep their time. A message you send is stored as its day, but keeps its place among the office's replies, so the conversation reads in order.

Security recommendations for whistleblowers

• Do not submit from a device or network that can be traced to you
• Use a browser in private/incognito mode
• Store the case number and PIN in a secure location not connected to your work identity
• Never share the PIN with anyone

Security Architecture

Defence in depth for anonymity: four independent layers keep IP addresses out of persistent storage.

The four anonymity layers

Rate limiting without IP tracking

• Wrong PINs are counted per case number, under an HMAC of it, so a Redis dump does not list which cases someone tried. After MAX_ACCESS_ATTEMPTS (5) within ACCESS_LOCKOUT_MINUTES (15), the status page asks to wait. A correct PIN always works.
• Admin passwords are counted per username (MAX_LOGIN_ATTEMPTS) and across all accounts, against password spraying (ADMIN_FAILED_LOGIN_ALERT_THRESHOLD).
• nginx limits every route, the submission wizard (POST /submit) included: 10 requests/s with a burst of 30 per client address. The counters live in nginx memory only and are never logged. The onion listener has its own shared zone.
• Helm: the chart sets the same limit on its ingress-nginx Ingress. With another ingress controller, set an equivalent one.

Security headers

The app sets them on every response, so they hold behind any proxy:

Onion listener trust boundary

With ONION_LOCATION set, the app decides per request whether it came through the onion (Tor) listener. That decides Secure cookies, HSTS and the Onion-Location header. The client-supplied Host header never decides it: a request on the HTTPS listener could claim Host: <anything>.onion. Instead, nginx sets X-OW-Onion: 1 only in the onion server block and clears it in the regular one, like the IP headers of layer 1. Both hold only while the app port is reachable through this nginx alone (Offering an onion address).

OIDC integration

With OIDC on, the identity provider is a second way past the first factor. It never replaces the second factor.

• Login uses PKCE; the app checks the provider's signed ID token (see OIDC_SERVER_METADATA_URL in the configuration table).
• Each person links their own account. Sign in with password and TOTP, then choose Link single sign-on on /admin/account.
• The provider's sub and issuer are stored on the signed-in account, and nowhere else. The audit log records auth.sso_linked.
• The link request is bound to that session. Finished in another browser or after sign-out, it links nothing.
• An identity already linked to another account is refused. An unlinked identity cannot sign in.
• Unlink single sign-on removes the link (auth.sso_unlinked). An account without a password cannot unlink its only way in.
• The password keeps working. Every login still ends with TOTP, as for every account.

Demo Mode

For the public demo at demo.openwhistle.net, never for production.

Enabling demo mode

DEMO_MODE=true

Demo mode behaviour

• Prefilled admin credentials: username demo, password demo, TOTP code 000000
• The static TOTP code 000000 is always accepted — no authenticator app needed
• All reports and messages are visible to the demo admin
• The password of the demo accounts cannot be changed, and their authenticator cannot be reset
• A banner on every page says this is a demo instance
• demo.openwhistle.net is wiped and restarted every 6 hours

Upgrading

Semantic versioning: minor and patch releases are backward-compatible. A major release may break things; its Changelog entry says what.

Standard upgrade procedure

# Back up first: a rollback needs it
$ docker compose exec db pg_dump -U openwhistle openwhistle > backup.sql

# The compose file and nginx config change between releases
$ git pull

# Set OPENWHISTLE_VERSION in .env to the new version, then
$ docker compose pull
$ docker compose up -d

# Migrations run at startup; the version is in the health check
$ curl -sk https://localhost/health

Before upgrading

• Read the Changelog for the target version.
• v2.0.0 adds ENCRYPTION_KEY, a key for encryption separate from SECRET_KEY: see Rotating the encryption key.

Upgrading to 2.0.0 with Docker Compose

• git pull is required, not only docker compose pull: the stack needs the new nginx/snippets/ and the tls-init service.
• A customised nginx/nginx.conf makes git pull conflict: replace it with the shipped one (git checkout -- nginx/nginx.conf).
• Certificates move from the old ./nginx/certs:/etc/nginx/certs mount to nginx/certs/ as fullchain.pem and privkey.pem, copied, not symlinked. Without them, a self-signed certificate is served.
• Port 80 now only redirects to 443. Behind an external TLS terminator, see Behind a TLS-terminating proxy.
• nginx also publishes 127.0.0.1:8080 (the onion listener). If another service on the host uses 8080, up fails: free the port first.

Rollback

The previous image refuses to start on a migrated database. Two ways back:

• Restore the backup into an empty database and pin the old OPENWHISTLE_VERSION.
• From 2.0.0 to 1.5.x: downgrade the schema with the 2.0.0 image first, then pin the old version:

$ docker compose run --rm app alembic downgrade 7d4e2b9c1a05
# then set OPENWHISTLE_VERSION=1.5.0 in .env
$ docker compose up -d

The downgrade decrypts the TOTP secrets again and needs the same encryption keys. Migration 006 rounded whistleblower times to the day; the downgrade keeps them rounded, the exact times are gone by design.

Rotating the encryption key

Re-encrypted: the per-report key wrappers, confidential identity and contact, secure e-mail, TOTP secrets, identity-reveal reasons. Report content and attachments are not touched. Back up the database first.

1. Set ENCRYPTION_KEY_PREVIOUS to the key in use: the old ENCRYPTION_KEY, or SECRET_KEY on an install that never set one.
2. Set ENCRYPTION_KEY to a new value (openssl rand -hex 32) and recreate the container: docker compose up -d (a restart keeps the old environment).
3. Run docker compose exec app python scripts/rotate_encryption_key.py. It writes nothing unless every value can be re-encrypted; otherwise it lists the rows by id. Safe to run twice.
4. Empty ENCRYPTION_KEY_PREVIOUS and recreate the container again: docker compose up -d.

At every start, before migrating, the app checks one stored report key and one TOTP secret. If no key opens them, it refuses to start and writes nothing; the log line names ENCRYPTION_KEY_PREVIOUS. That happens, for example, when ENCRYPTION_KEY is set on an existing install without step 1, or removed again.

Helm: before step 3, wait until every pod runs with the new environment (kubectl rollout status). During the rolling update, old pods cannot read data that new pods write.
